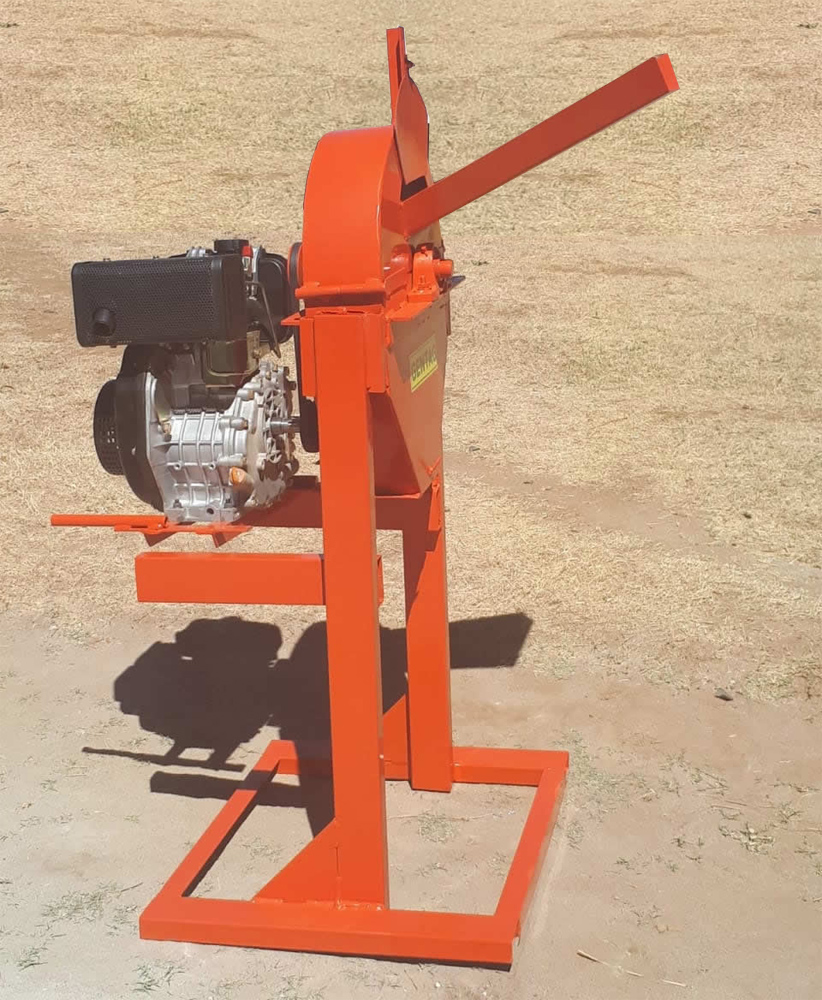

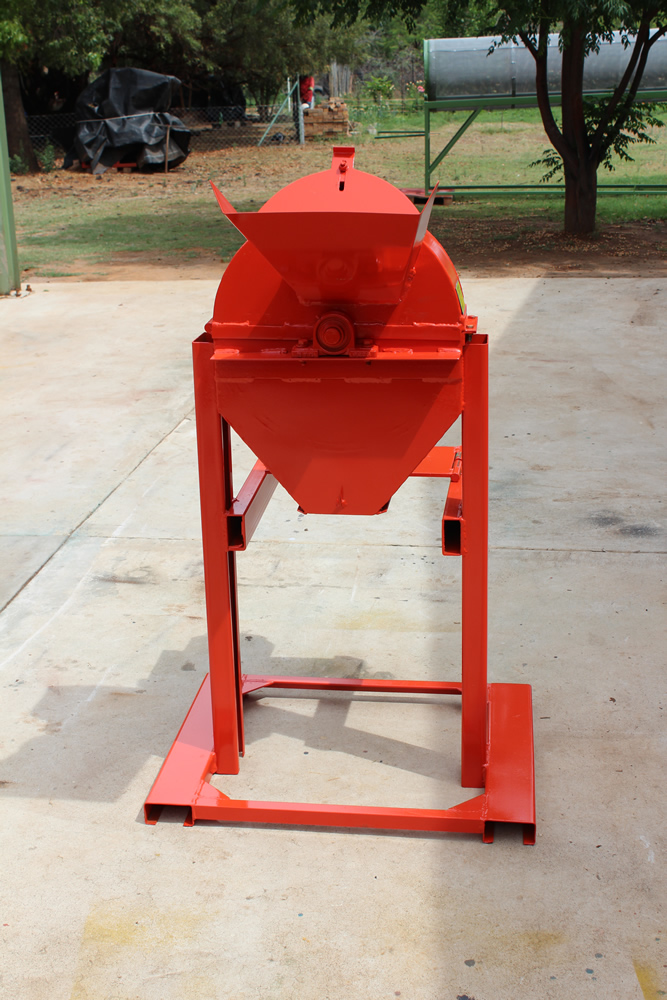

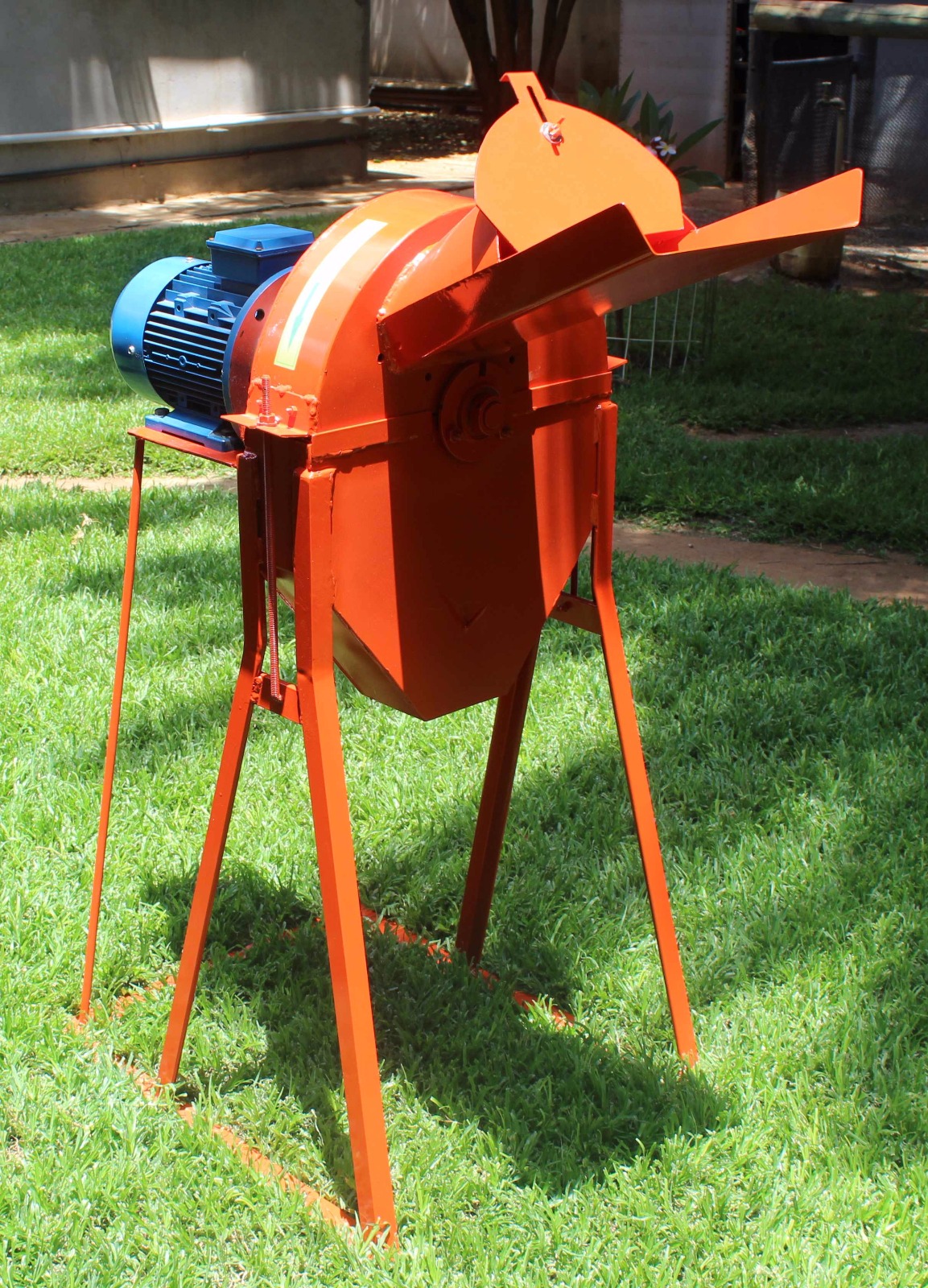

Gentag Junior Hammer Mill

zoom in with your mouse |

Gentag Junior Hammer Mill

Gentag Entry-Level Hammer Mill.
A no-fuss machine for the entrepeneur and communal farmer.
Equiped with a double flange rotor and 12 or 16 milling blades.
Can easily handle up to 70kg of gine maize per hour.
Ideal for all types of fodder.
Sieves from 0.8mm up to 25mm.
Driven by a 3KW Diesel or Electric motor.
180 degree Milling area
Reliable
Cost effective
Sturdy design
Low maintenance
Minimum wear and tear
Weight with electric motor 52kg

Watch a demo video More info

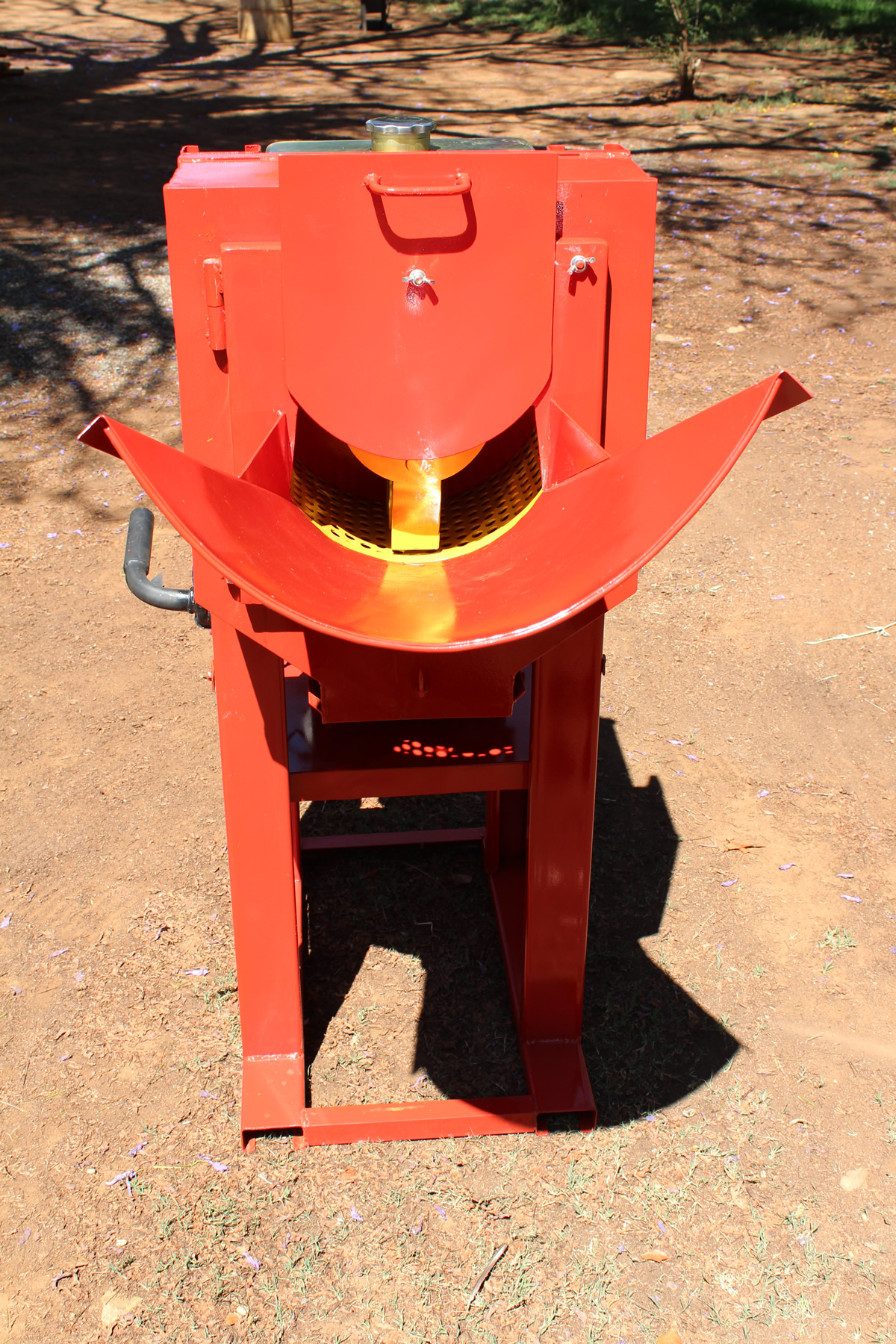

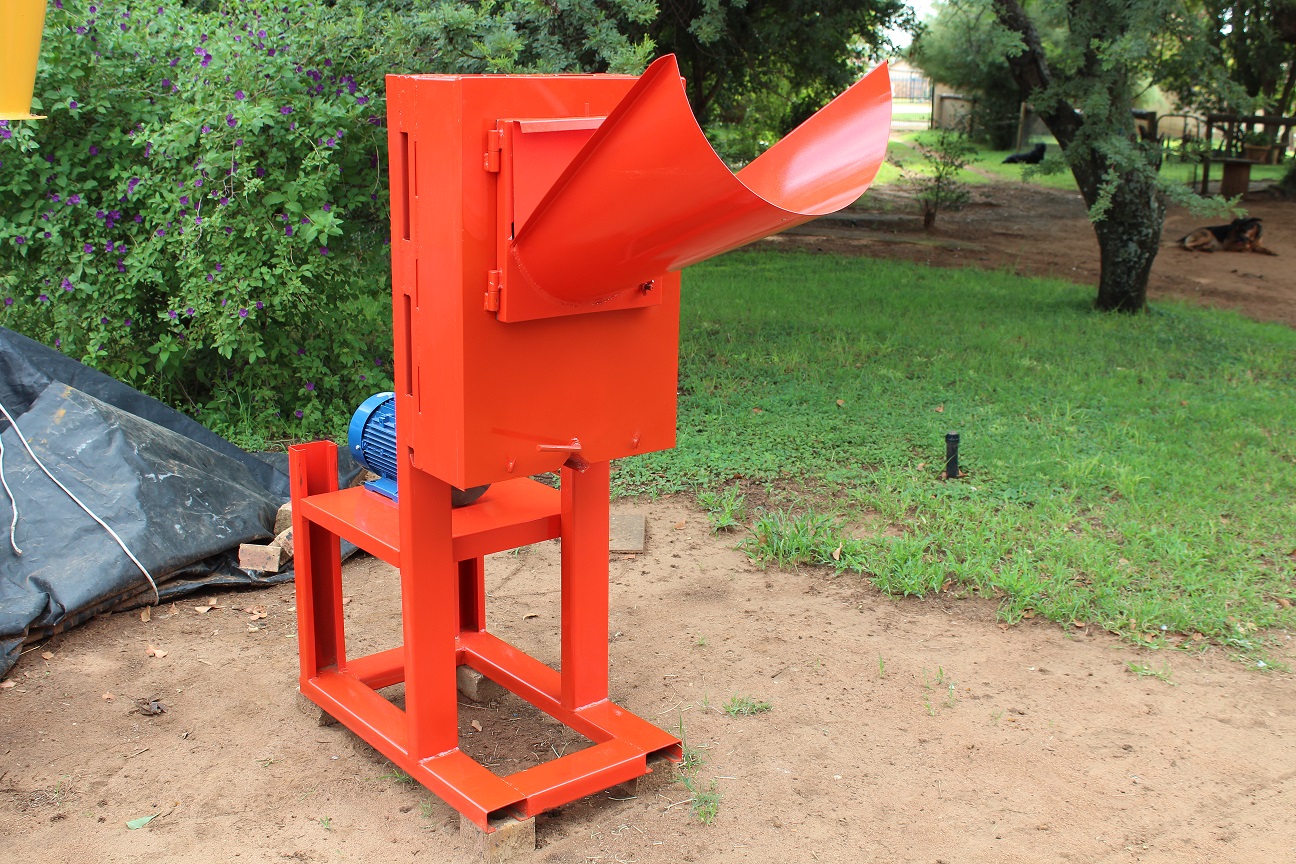

Gentag Super Hammer Mill

zoom in with your mouse |

New Gentag Super Hammer Mill.

A must for entry level farming
The Gentag Super Hammer Mill is affordable with an unbeatable price tag
Double rotor fitted with 8 tempered blades
Low power consumption
Driven by 3KW or 5.5KW Diesel or Electric motor
360 degree Milling area
Sieves from 0.8mm - 30mm
Produce fine maize in an instant
Capacity from 300kg to 3000kg per hour
Easily mills all types of grain and fodder
Straight forward concept
Easy to maintain

Watch a demo video More info

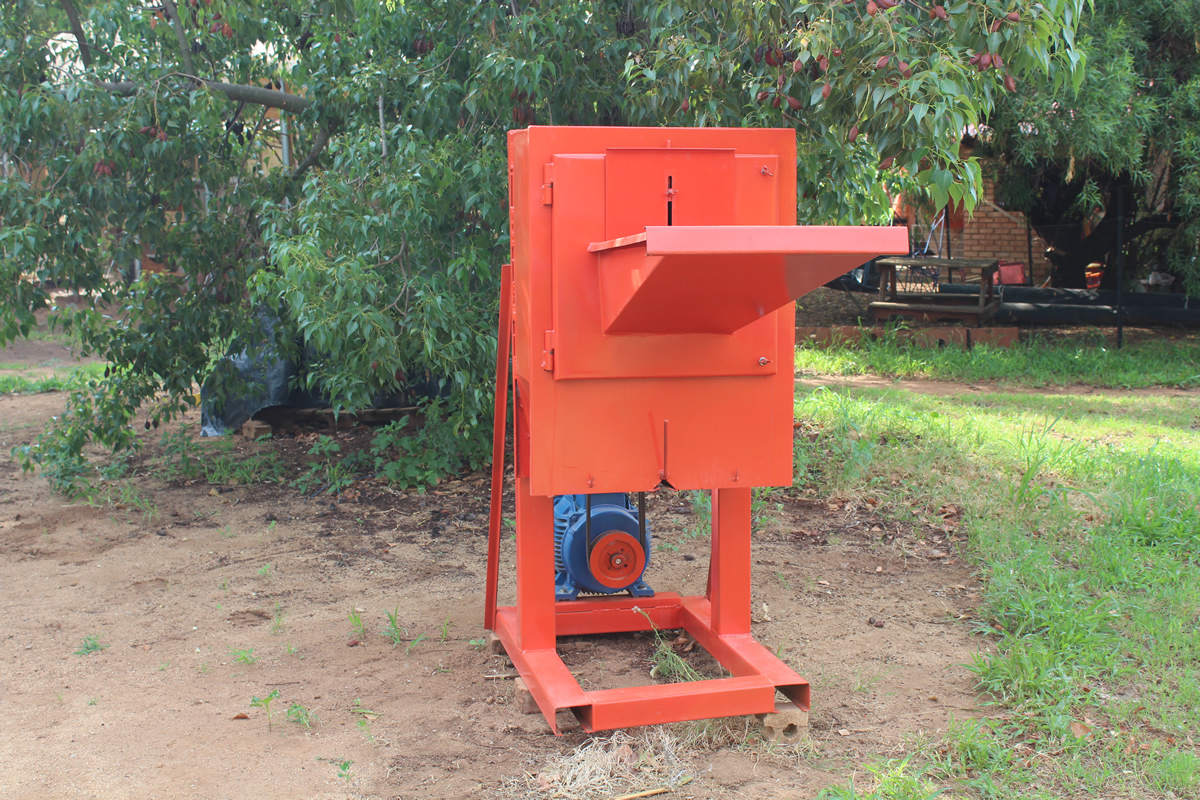

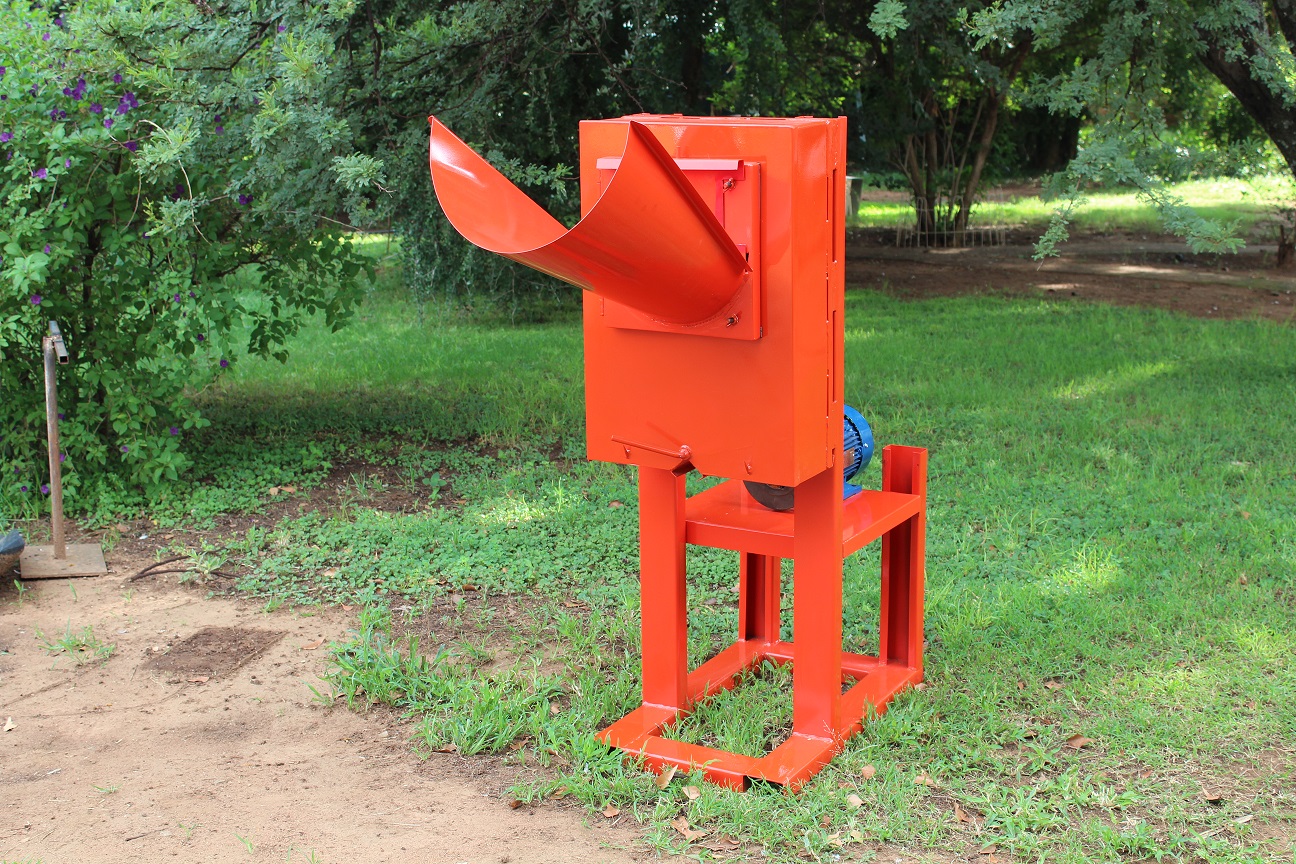

Super G2 Hammer Mill

zoom in with your mouse |

The innovated concept allows the farmer to produce a fine quality product. The Gentag Super G2 is a bottom drop dust free hammer mill. A double flange 8 blade quatro motor allows the Hammer Mill to provide an excellent level of output under light to moderate conditions with the greatest degree of cost efficiency Two-in-one hammer mill suitable for milling of all types of grain and fodder. Outperforms similar imitations by far. The Gentag Super G2 hammer mill is the only in it's kind to mill carton and paper products. Highly effective on gypsum, coal and semi hardened materials. The Super G2 is equiped with 360 degree sieve ranging from 0.8mm to 40mm

CAPACITIES:

Fine maize - 430Kg per hour
Lucerne - 860Kg per hour
Grass - 288Kg per hour
Crush mealies - 5294Kg per hour

Driven by 5.5 or 7KW Diesel of Electric motor
Weight : 210Kg with electric motor

Watch a demo video More info

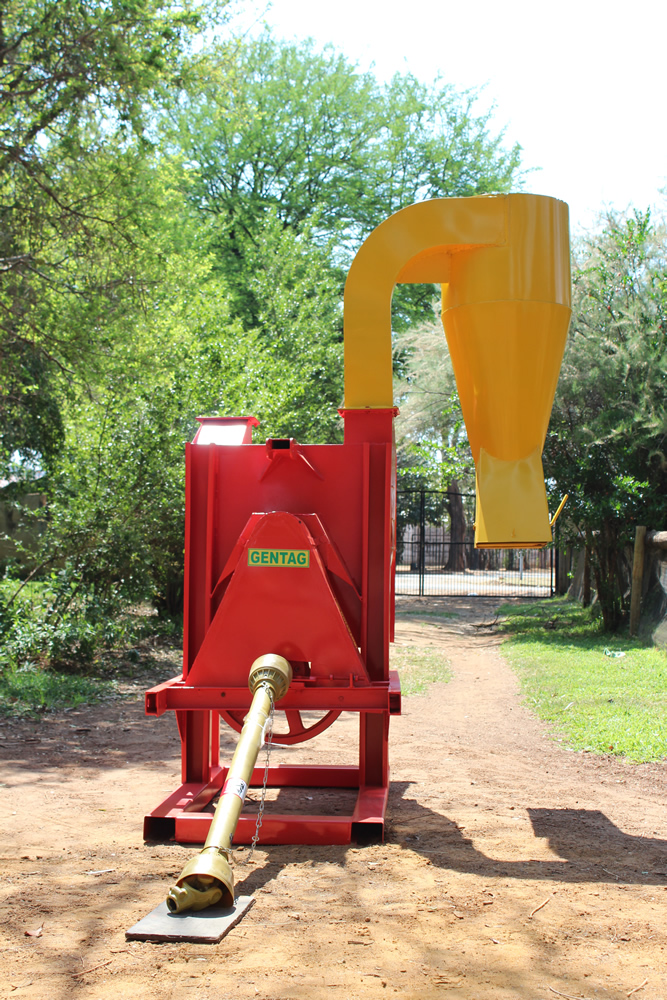

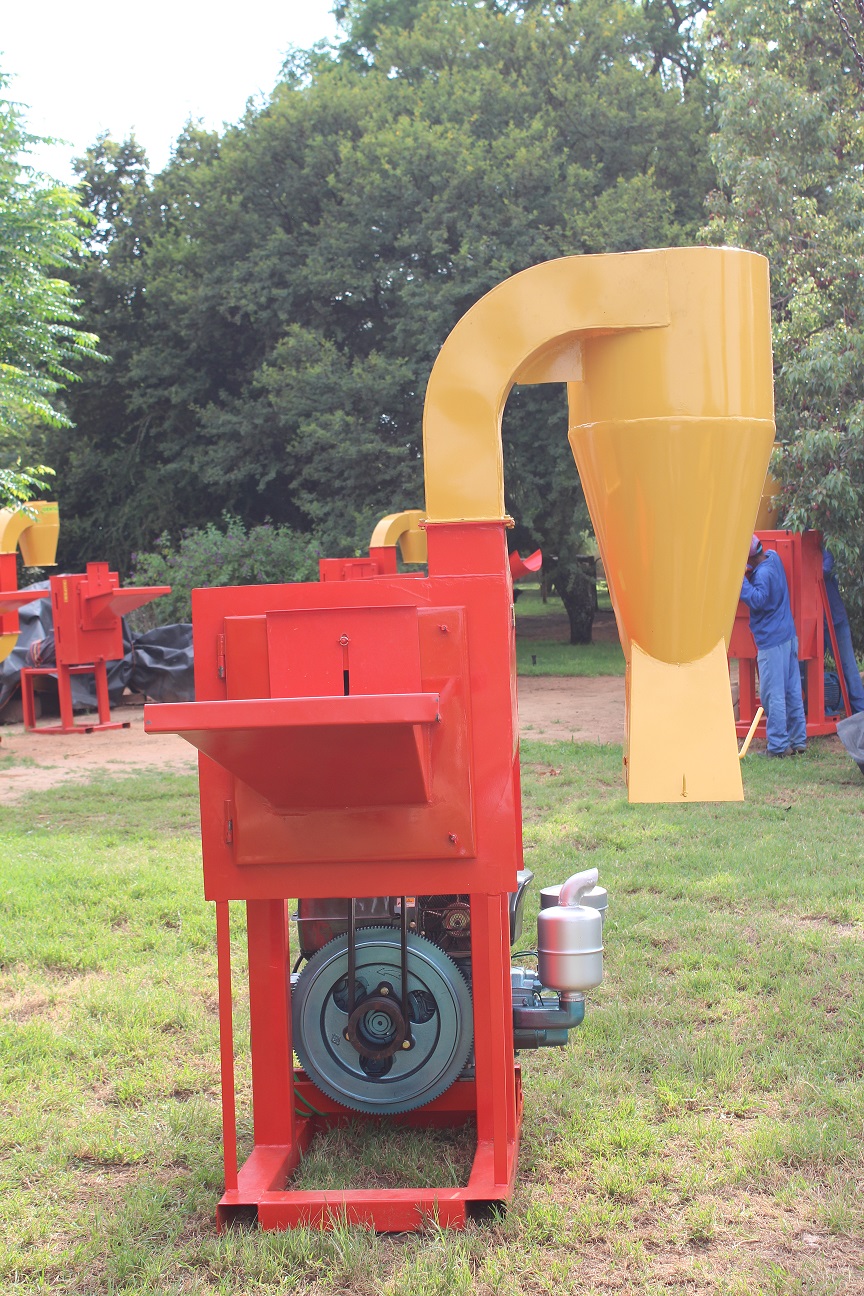

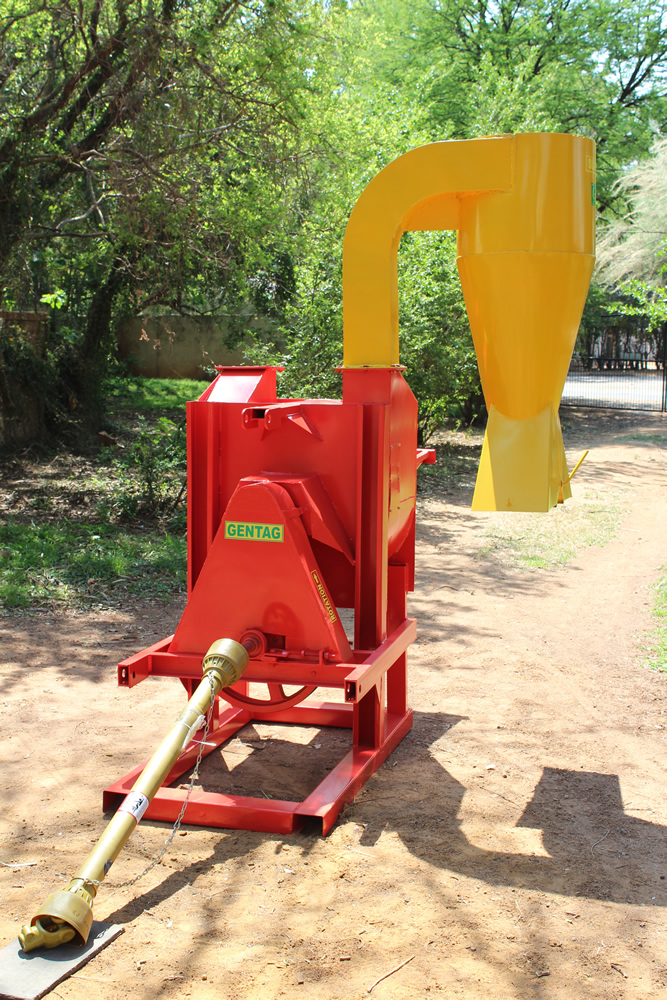

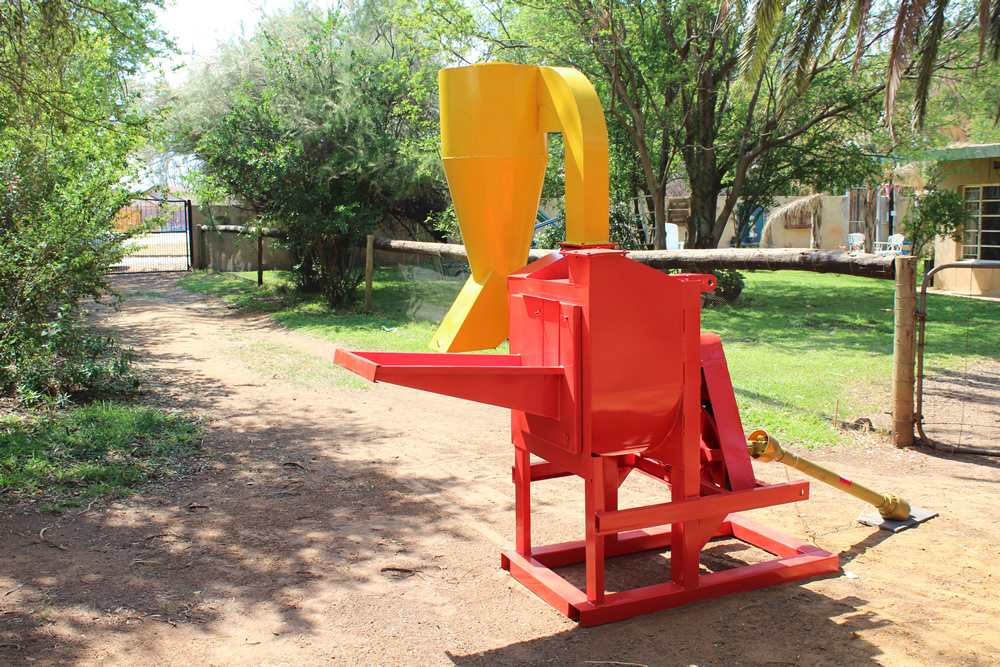

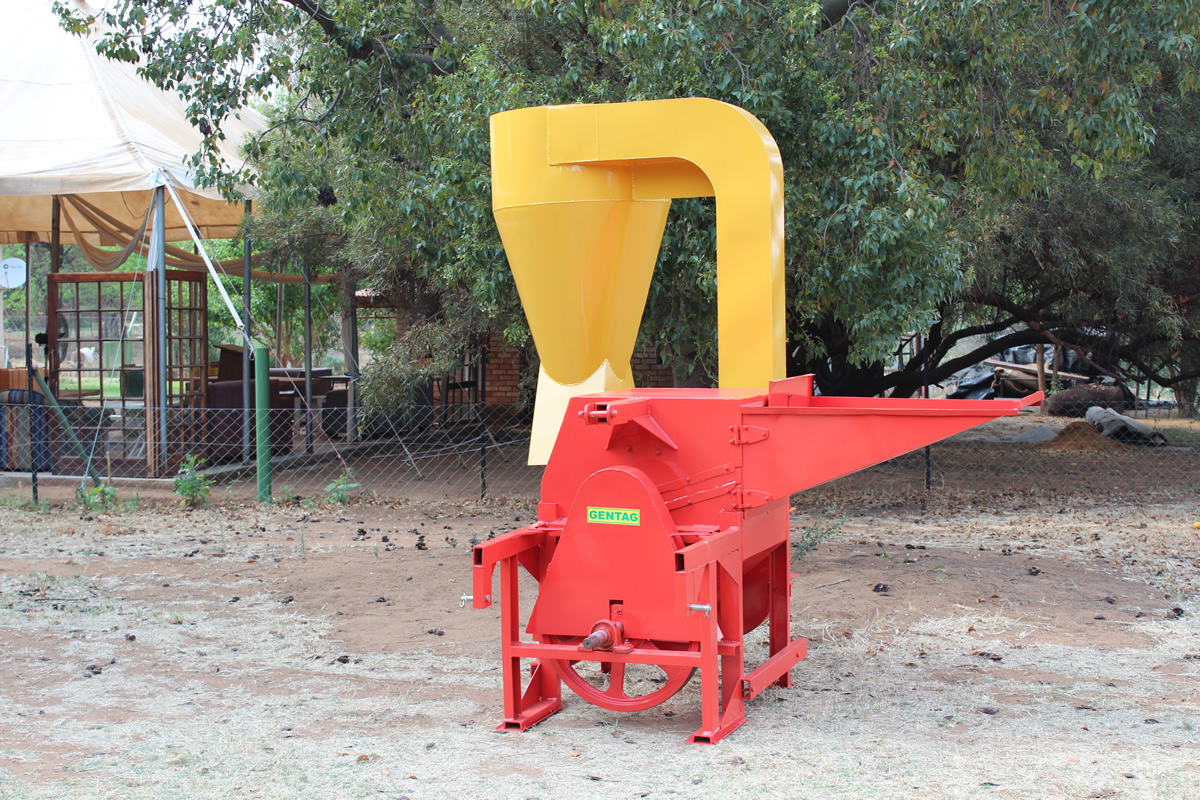

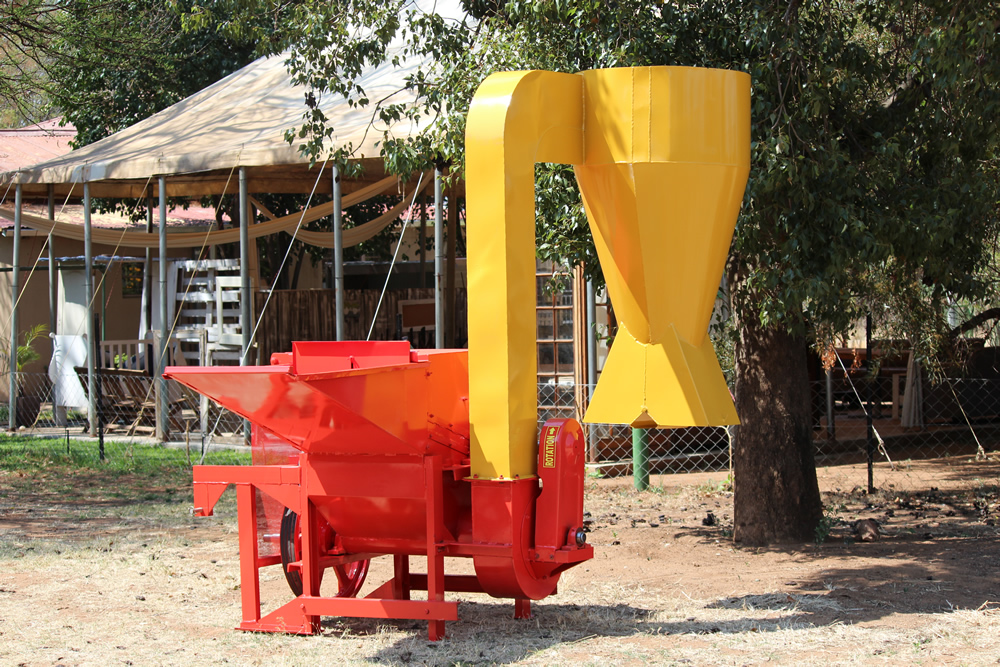

Maxi G6 with Cyclone

zoom in with your mouse |

The Gentag Maxi Hammer Mill was the first of it's class fitted with a Cyclone dating back to 2004. Several other imitations followed, however, Gentag was and still is the leader in development and the innovator of the fantastic concept. The low pressure Cyclone has been developed for 100% separation of micro particles and dust. Centrifugal force seperate the particles. Air dust and unwanted particles escape at the top and milled product drops to the outlet port of the cyclone. This ensures that the end product is exactly what it should be. The Gentag Maxi G6 with Cyclone can basically mill all types of material and is known for milling fine maize, crushed mealies, all grain and fodder types.

Capacities from 500-9000Kg per hour
Driver requirements:
Diesel 15KW
Electric 11-15KW
P.T.O. 20KW
Weight 478Kg including electric motor

Watch a demo video More info

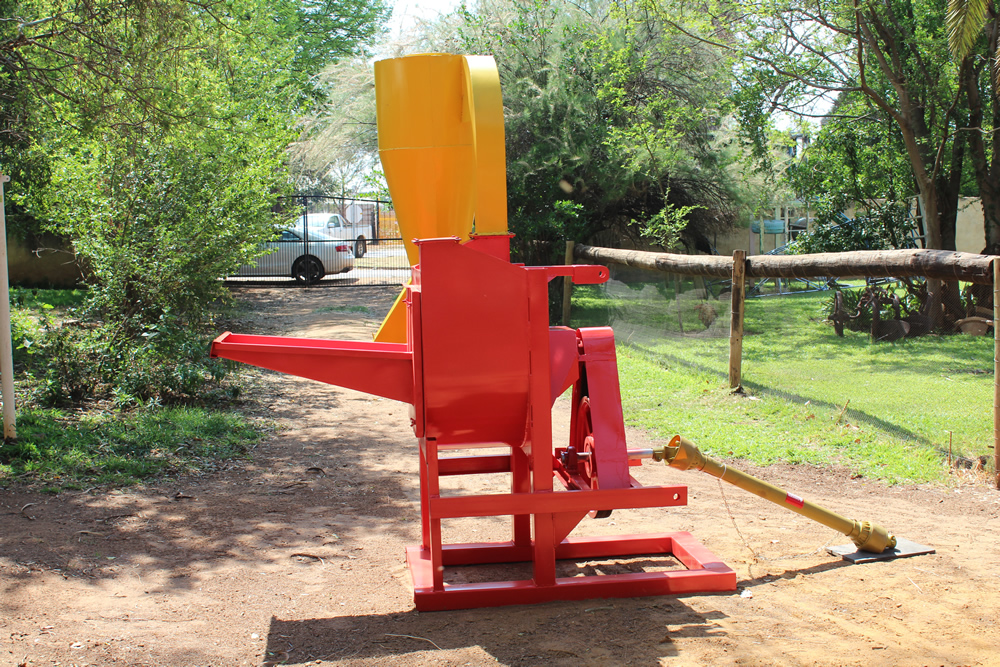

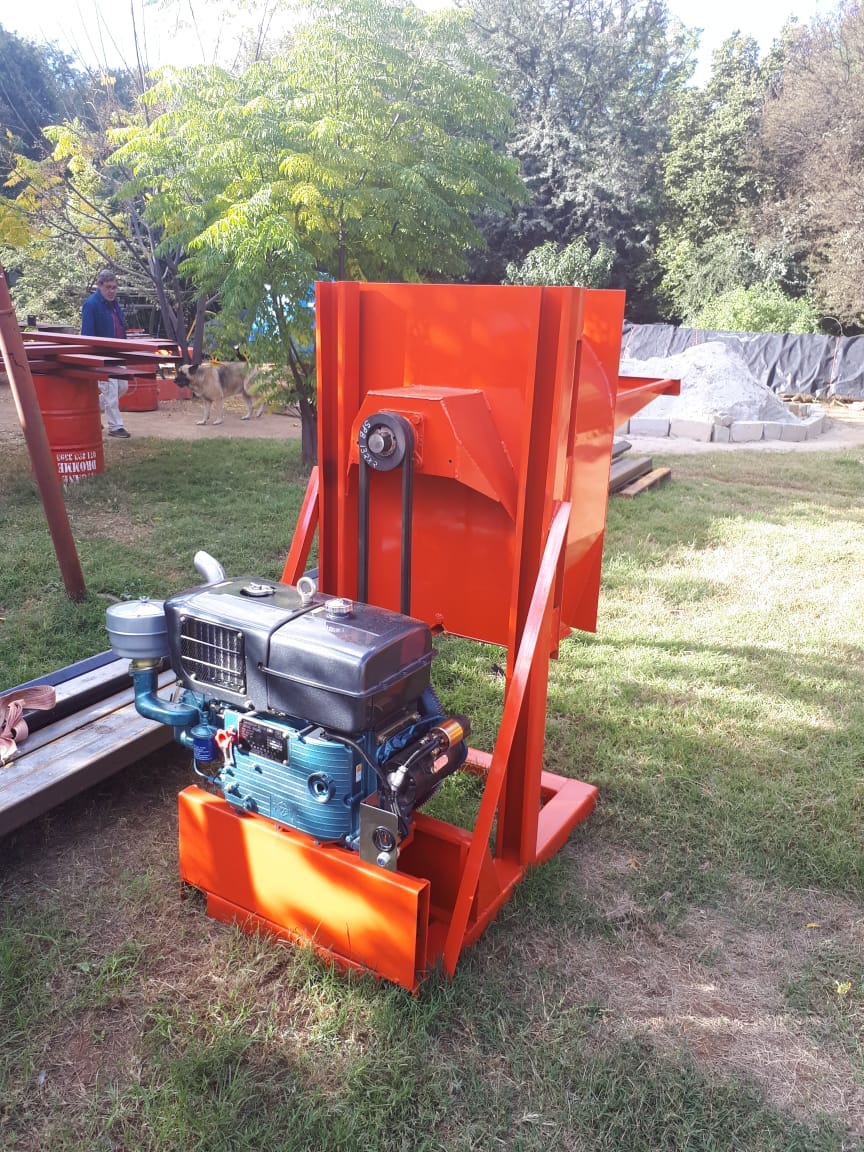

Maxi G6 Bottom Drop

zoom in with your mouse |

Intellegent fodder making
The Getag Mxi G6 bottom drop with superior qualities
A segmented double flange rotor is fitted with either 8 or 12 hardened cutting and grinding blades
360 degree milling area
Maximum output
Reduce double handling
High speed, high capacity displacement
Double spout outlets
Interchangeable hammers
For grinding and milling all types of grain and fodder. Also used for milling solid biomass, semi hardened materials, wood chips and many more
Driver requirements :
Diesel 13.5KW
Electric 11KW
P.T.O. 15KW
Weight : 372Kg including electric motor

Watch a demo video More info

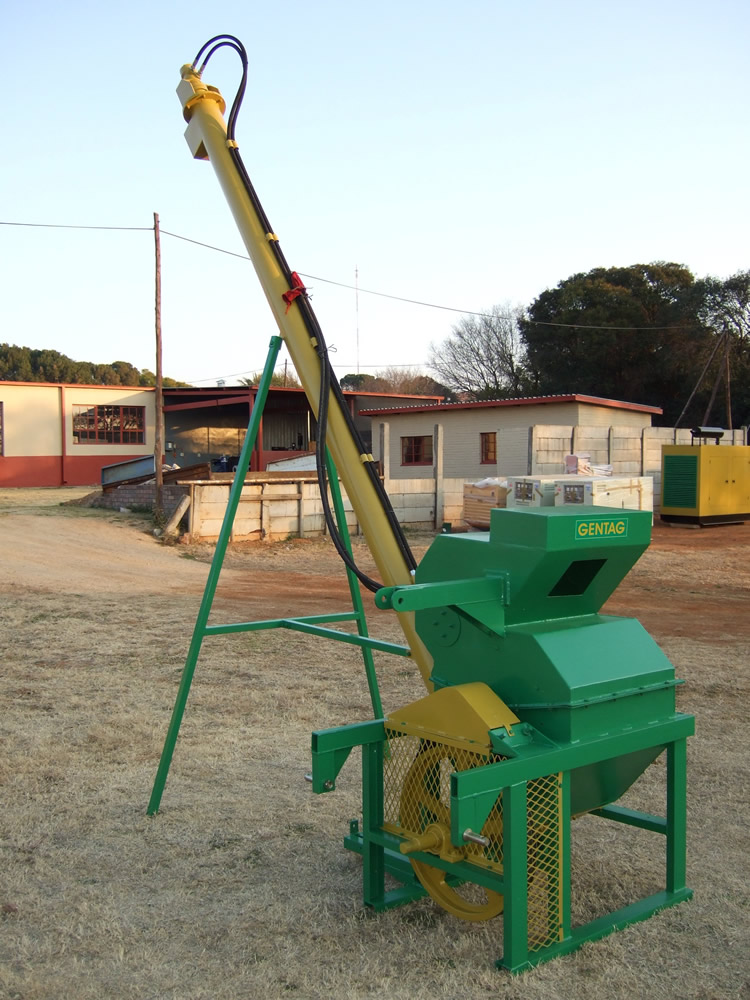

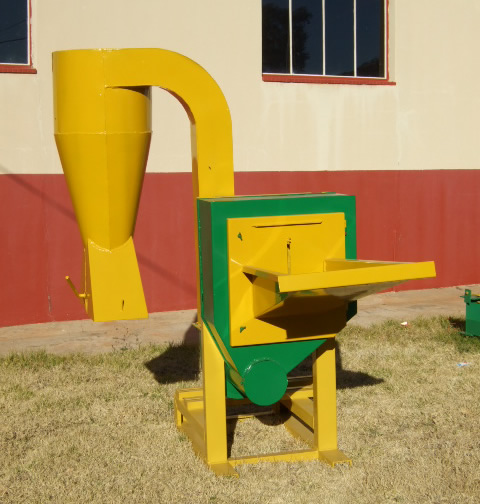

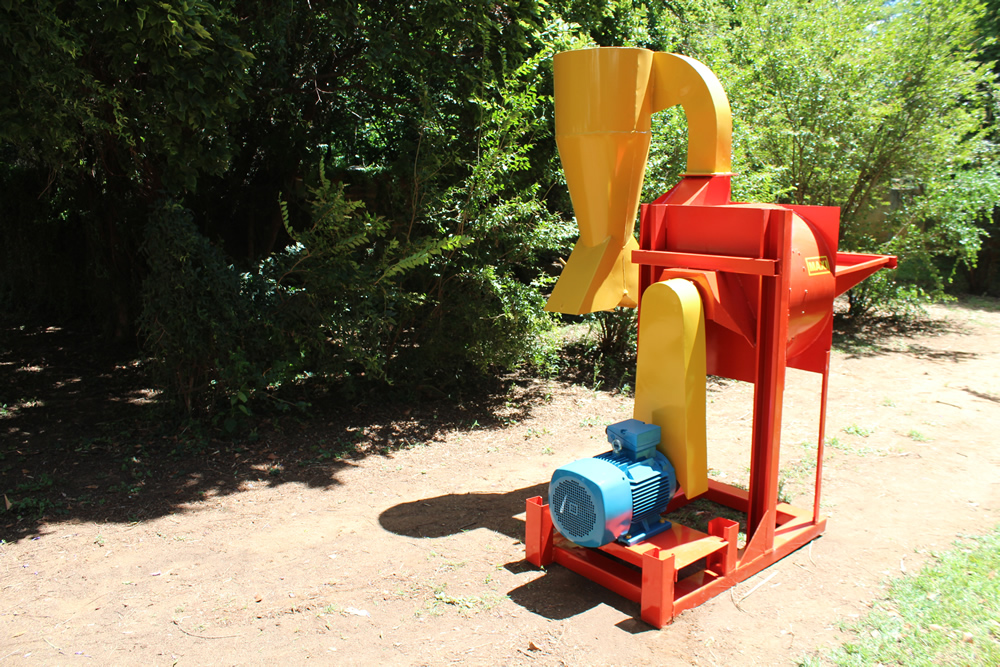

Maxi G6 Suction Blower Hammer Mill

zoom in with your mouse |

For the more serious farmer. The Gentag G6 Centrifugal Hammer Mill has been designed with a base of over 40 years experience in milling apparatus. This design is based on having a high speed radial centrifugal fan connected to the bottom outlet of the hammer mill, enhancing the capacity of the Genta Maxi G6 by as much as 25%. The sieve of the hammer mill is continiously sucked clean by the centrifugal fan and the milled product delivered to the cyclone.

Mealies : 600-12000Kg per hour
Fodder : 520-2800Kg per hour
Suitable for all grain and fodder types
Superior in milling carton and paper products
Also mills wood chips, coal, charcoal, gypsum, glass bottles and many more
Fitted with the following drivers:
Diesel motor - 13.5-15KW
Electric motor - 11-15KW
P.T.O. - 15-20KW
Weight : 515Kg including the electric motor

Get the brochure More info

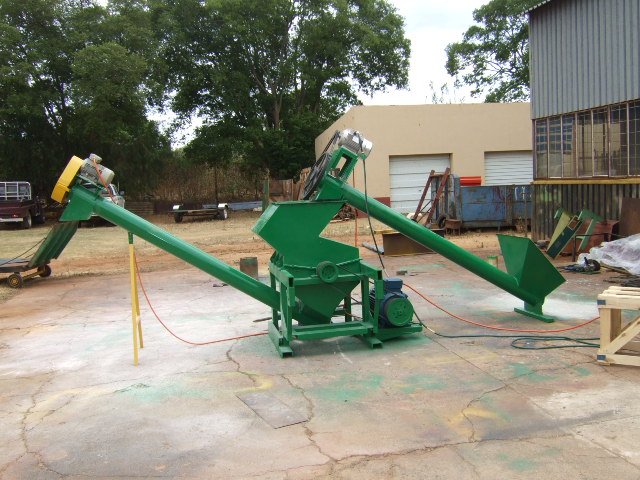

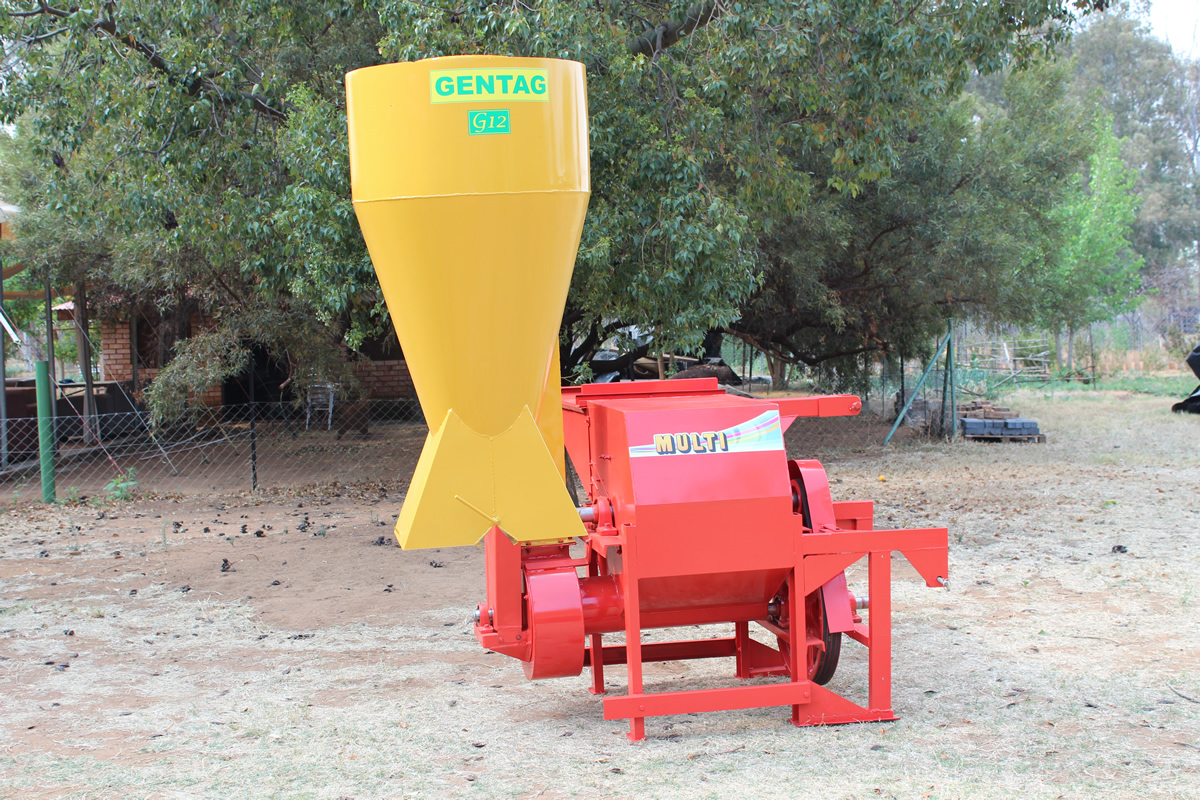

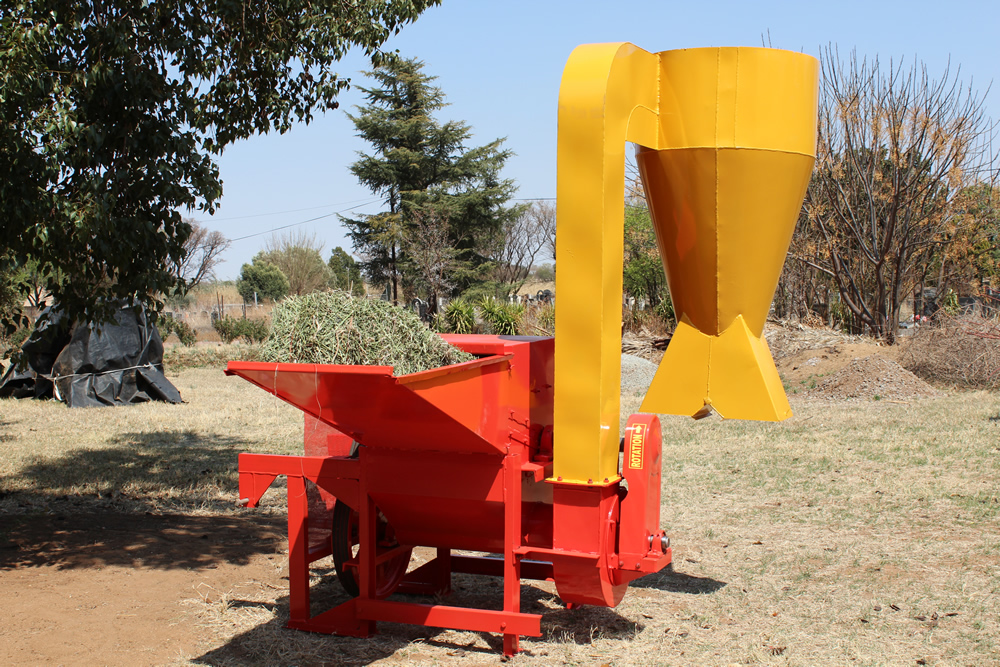

Multi G12 Hammer Mill

zoom in with your mouse |

Save 48% on electricity or any power source. a Pure Hybrid Hammer Mill.

Gentag flagship hammer mill. Mill all types of grain and fodder. Ideal for square bales, small round bales and "straight run" mealie meal.

Available : Electric, Diesel or PTO. Stationary or on wheels. No inside blower. The suction blower cleans the sieve for more effective than the old conventional inside blowers thus enhances the capacity by almost 30%. Far less power is required. Only 22kW needed versus other hammer mills that is driven by 45kW drivers.

The mill generate far less heat while milling the product. Thrust loads being absorbed by 4 heavy flange rotors.

Milling area .81m²
Equiped with 36 hardox steel cutting and grinding blades.

Optional : Variable speed feeding conveyer. Adjustable outlet shute.

Watch a demo video Get the brochure More info
